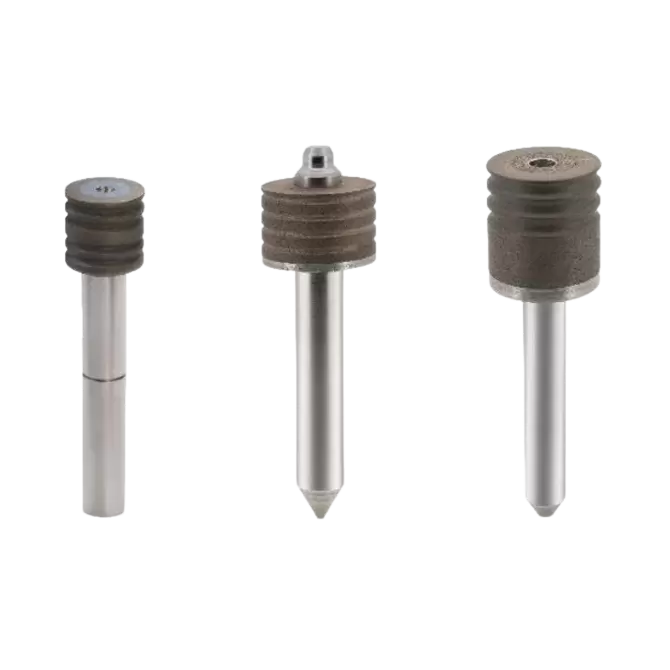

Home > Products > Display Glass Processing > GRINDING WHEEL
Suitable for corner grinding and terminal edge precision grinding of products such as vehicle display cover glass, OGS (One Glass Solution) touch panels, and industrial control display glass. It supports customized integrated rough and finish grinding solutions, which can greatly improve processing efficiency.Specially used for precision glass processing in the vehicle display industry, such as LCD instrument clusters and central control display screens.

Core Advantages

  • Superior Sharpness

    Superior Sharpness

    High-quality diamond abrasive combined with an exclusive formula delivers outstanding sharpness, ensuring a highly efficient and smooth edging process, which greatly improves overall processing efficiency.
  • Excellent Heat Dissipation & Chip Removal

    Excellent Heat Dissipation & Chip Removal

    The dense and uniform tooth structure guarantees sufficient cooling during edging, enables unobstructed chip discharge, and avoids processing quality defects caused by heat accumulation.
  • Premium Compatibility & Stability

    Premium Compatibility & Stability

    It is fully compatible with double edging machines of all brands. Its structural design perfectly fits the equipment operation requirements, delivering exceptional running stability and more controllable processing accuracy during use.

Key Parameters

Grinding Wheel Diameter (D)ø10-ø15 mm
Shank Diameter (d)ø6 mm、ø10 mm
Groove TypeTrapezoidal, U-shaped, Grooveless
Grit Size (#)400#-1200#
Workpiece0.5T, 0.7T, 1.1T and other thickness glass
Equipment Rotation Speed (r)18000-32000 r/min
Feed Rate (vf)300-1200 mm/min
Grinding Depth (ae)0.1-0.5mm (divided into rough and finish grinding)
