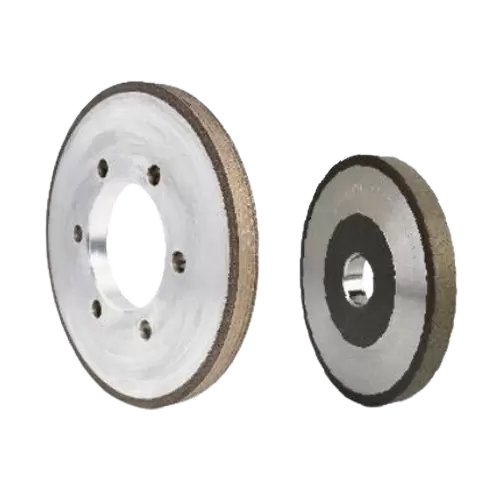

Home > Products > Display Glass Processing > GRINDING DISC
It adapts to the processing characteristics of high linear speed, high feed rate and low grinding depth. The processed products have no chipping defects after AOI (Automatic Optic Inspection) detection, and is equipped with a manual re-inspection and verification process.Suitable for the precision processing field of large-size high-end liquid crystal display panels such as laptops and TVs.

Core Advantages

  • Superior Sharpness

    Superior Sharpness

    High-quality diamond abrasive combined with an exclusive formula delivers outstanding sharpness, ensuring a highly efficient and smooth edging process, which greatly improves overall processing efficiency.
  • Excellent Heat Dissipation & Chip Removal

    Excellent Heat Dissipation & Chip Removal

    The dense and uniform tooth structure guarantees sufficient cooling during edging, enables unobstructed chip discharge, and avoids processing quality defects caused by heat accumulation.
  • Premium Compatibility & Stability

    Premium Compatibility & Stability

    It is fully compatible with double edging machines of all brands. Its structural design perfectly fits the equipment operation requirements, delivering exceptional running stability and more controllable processing accuracy during use.

Key Parameters

Grinding Disc Diameter (D)ø100 mm、ø150 mm、ø200 mm
Mandrel Diameter (d)ø20 mm、ø50 mm、ø80 mm
Groove TypeTrapezoidal, U-shaped, Grooveless
Grit Size (#)400#-1200#
WorkpieceNot specified in the original document
Equipment Rotation Speed (r)3000-8000 r/min
Feed Rate (vf)8000-12000 mm/min
Grinding Depth (ae)Not specified in the original document
